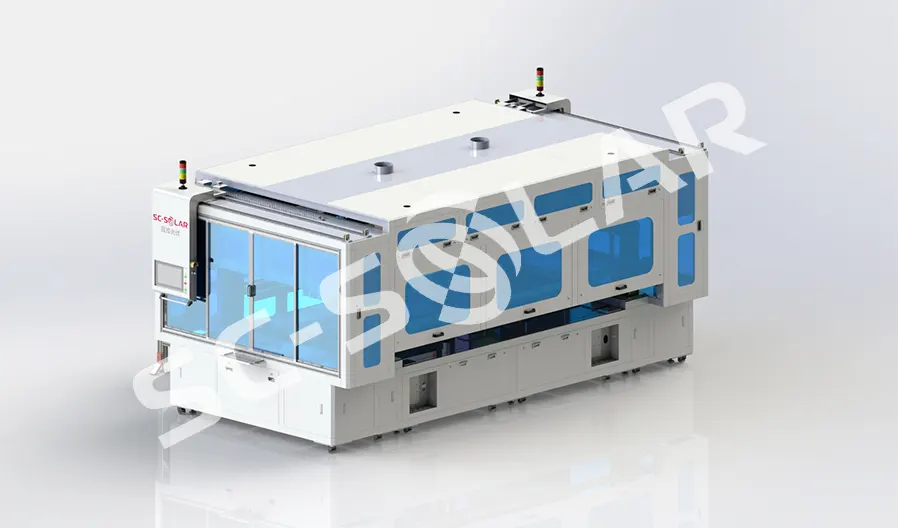

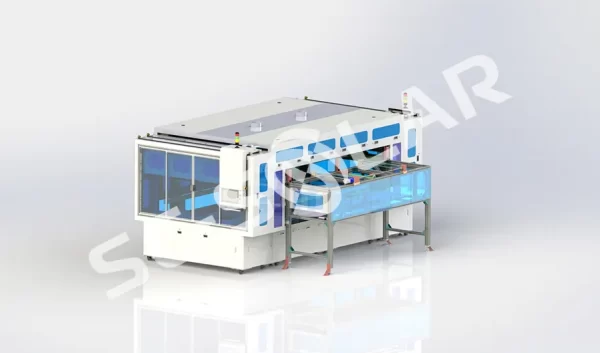

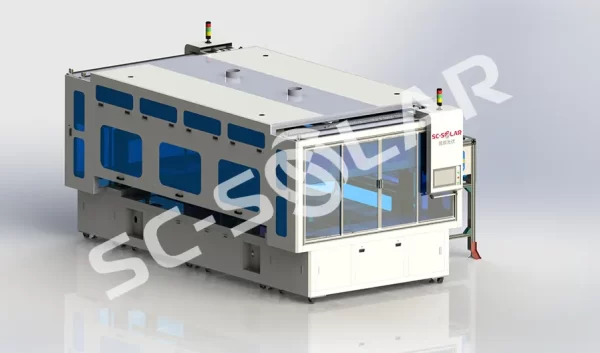

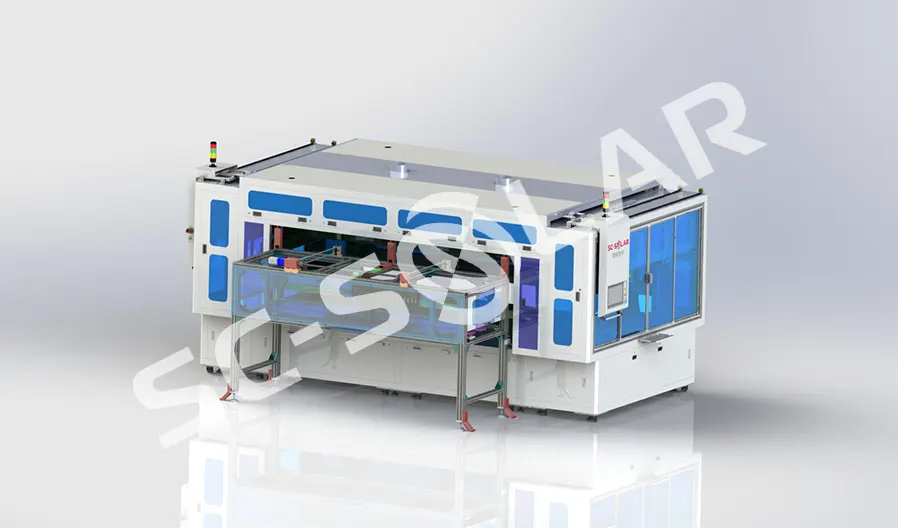

Module Repairing Machine

Features

Compatible for 210 modules (excluding jumper wire), half-cell modules and double glass modules repairing.
The disassembling welding head is controlled individually, can disassemble and weld a single string.
External feeding unit for OK string feeding and NG string unloading, with a camera to judge the direction of string.
Have unique devitation correction mechanism, devitation correction range ±20mm.
Compatible with larger modules: 2700*1500(mm).

Datasheet

Functionality

Cell size:166*166-230*230(mm)/9-20(BB)
Module specifications:
A,166×166-185×185 cell: 6 stringsx10 half-cellx2; 6 strings x11half-cellx2; 6 strings x12 half-cellx2;6 stringsx12 half-cellx2; cell spacing 0.4-5 (mm), string spacing 1-4(mm);
B, 210×210 cell: 6 stringsx10 half-cellx2;6 stringsx15 one-third cell x2; piece spacing 1-4(mm), string spacing 1-4(mm)
Glass size: Max 2700*1500(mm); Min 1640*980(mm)
Bus-bar specification: roll feeding, material thickness 0.18-0.45(mm)
width 4/5/6/7/8mm, roll weight ≤30kg
Bus-bar and welding belt tension: >5N/mm(spraying flux)
Cycle time: 85s
Fragmentation rate: <0.2%. Yield: ≥99% Utilization rate: >98%
Welding mode: electromagnetic induction
Module input/output height: 950-980(mm)
Bend up U/L lead height range: 10-25(mm)

Specifications

Item	Value
Power requirement	AC380V±5%, 3P+1N+1PE(3-phase5-wire system)
Air pressure	0.5-0.8(MPa)dry and clean compressed air; dosage: 2 m³/min
Power	Rated 50kW, average power about 35kW
Weight	6500kg
Dimension(L x W x H)	528038662520(mm)
