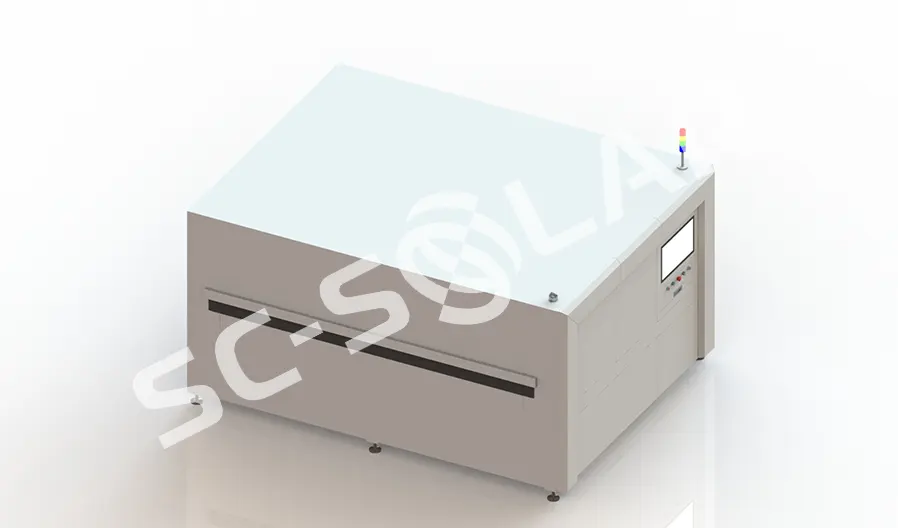

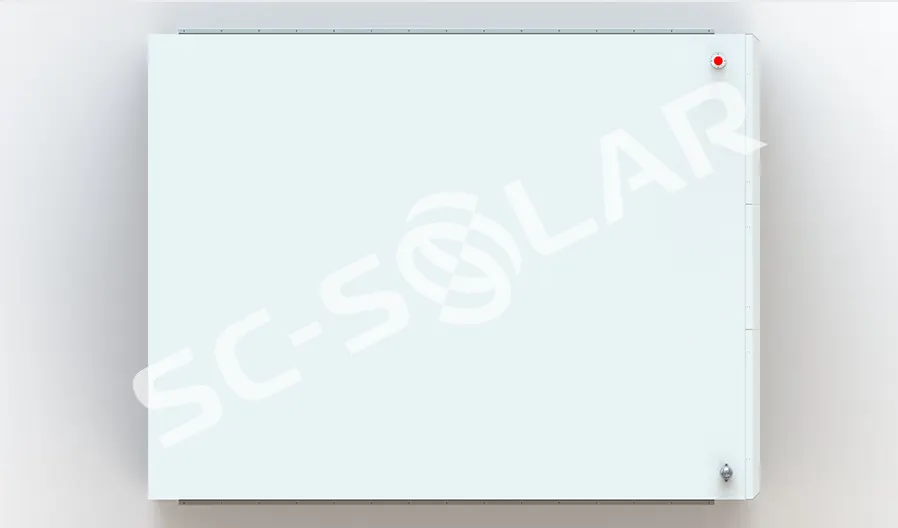

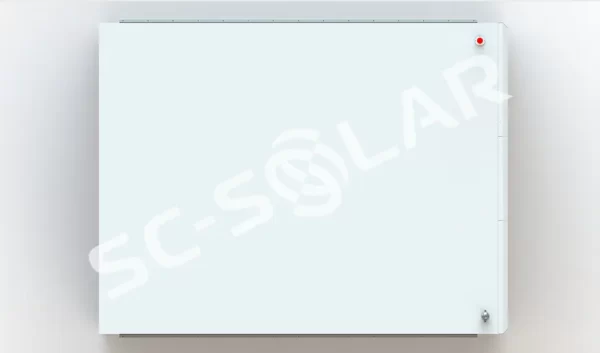

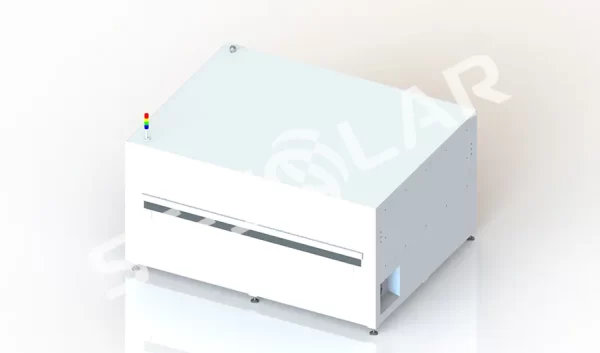

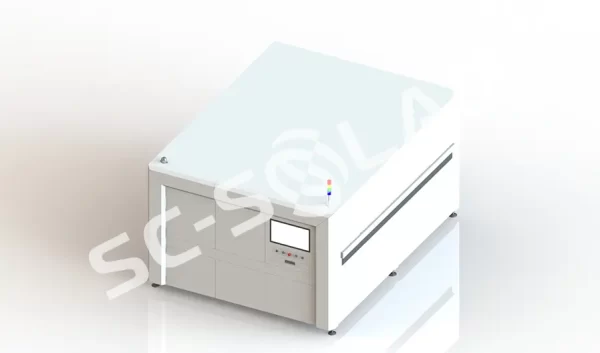

J-Box Detection Machine

Functionality

Cycle time: ≤16s
Available working hours: >23h/day
Utilization rate:>99%
Streamline speed: 800-1200mm/s (can be adjusted)
J-box welding method: resistance tin welding
One-time pass rate: ≥99.95%
Change time: ≤1min

Datasheet

Features

The overall structure consists of convey unit, lead chamber, detector imaging system, etc.
Servo feed, automatic switching, ensure that the modules can be feed in/out at the same time, save cycle time.
The modules are automatically transmitted to the equipment, the detector automatically performs visual detection.
Use touch screen interface to set the parameters such as module specifications, manual operation and alarm information.

Specifications

Item	Value
Compatible module size	length: 1650-2520(mm); width: 900-1400(mm)
Light tube type	Microfocal spot closed tube
Power	90kV
Current	0.05-0.7(mA)
lmaging area	157*157(mm)
Spatial resolution	3.2LP/MM
Lead chamber radiation	<1uSv/Hr
Detection mode	Straight shot, multi-point detection (points≤3)
Acquisition time	0.5s
Equipment transfer height	950±30mm
