PV Module Manufacturing Solution

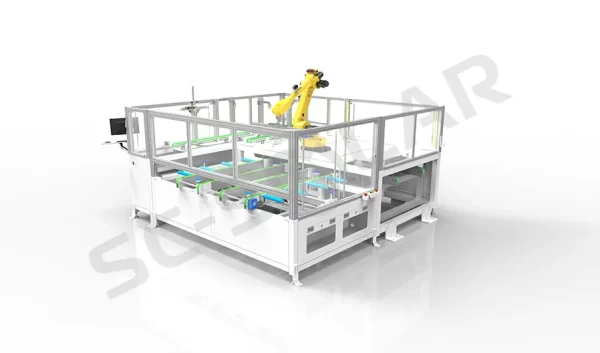

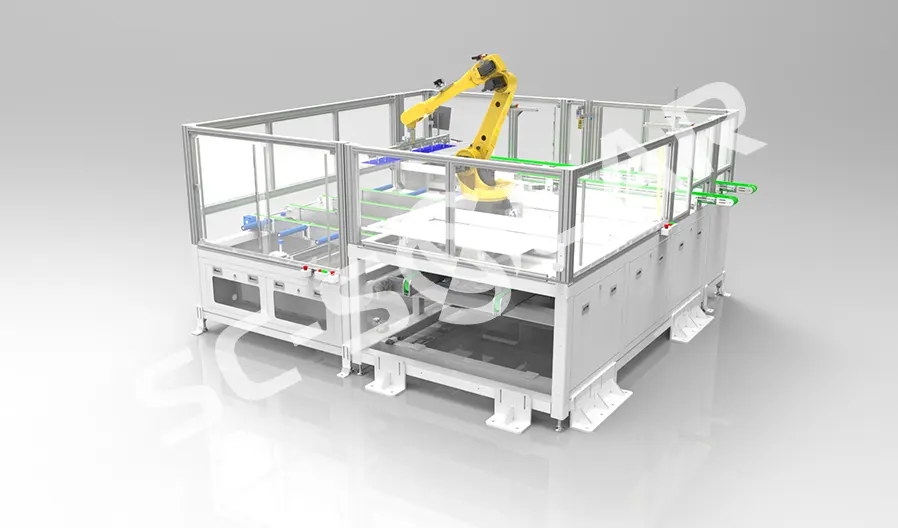

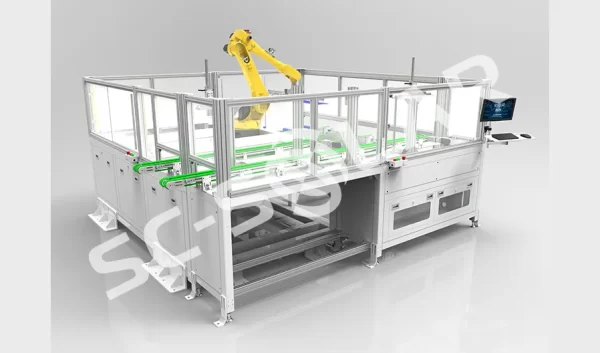

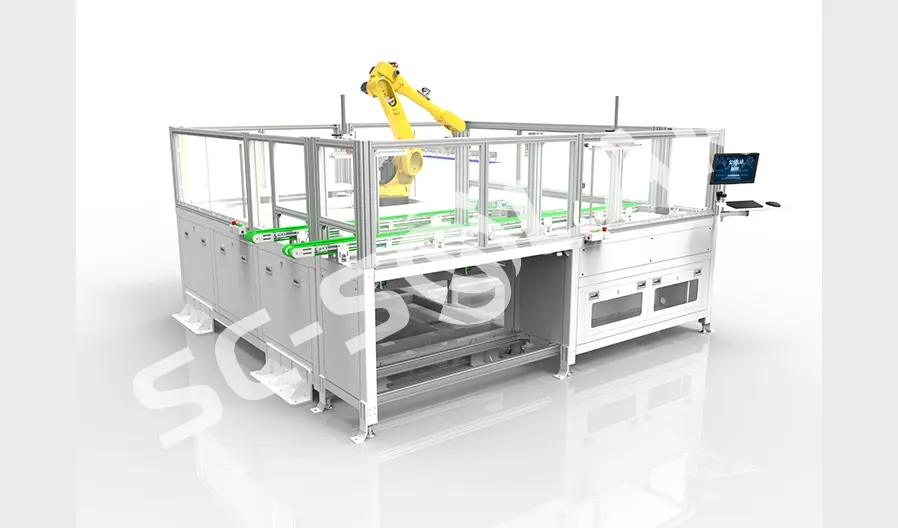

High Speed Robotic String Layup

Functionality

Cycle time: half cell≤3.5s/pcs
Accuracy: string spacing ±0.4mm;
distance between string to the glass edge ±1mm
Compatible size: 60/72/half-cell/MBB/MBB half-cell
Rate: ≥98%
Fragment rate: <0.02%
Vision: dual image system, resolution of 0.05
Noise: ≤72dB

Datasheet

Features

The cell string output of the stringer can be applied to single-rail and double-rail.
String positioning method: visual positioning.
The main frame structure is steel, firm and reliable.
The robot has fast speed, high positioning accuracy, stability and reliability.
The vacuum suction cup sucks cell string without leaving traces.
Fully automatic equipment control, no human intervention is needed during the operation.
The cell string adsorption fixture has a vacuum detection function to prevent string falling.
Replace the different cell strings directly, some adjustments needed if necessary.
Support online and offline rework of strings.
Fit for horizontal, vertical and AB string module.

Specifications

Item	Value
Model	SC-SL54-RX-01
Compatible module size	length:1650-2550(mm); width: 990-1450(mm)
Cycle time	half cell:4s/pcs (infeed, outfeed and alignment, 5s)
Power	6kW
Power requirement	AC380V±5%，3P+1N+1PE，20A，50/60Hz
Air pressure	0.6-0.8(MPa)
Air consumption	400L/min
Weight	3700kg
Dimension(LxWxH)	375037502500(mm)
