PV Module Manufacturing Solution

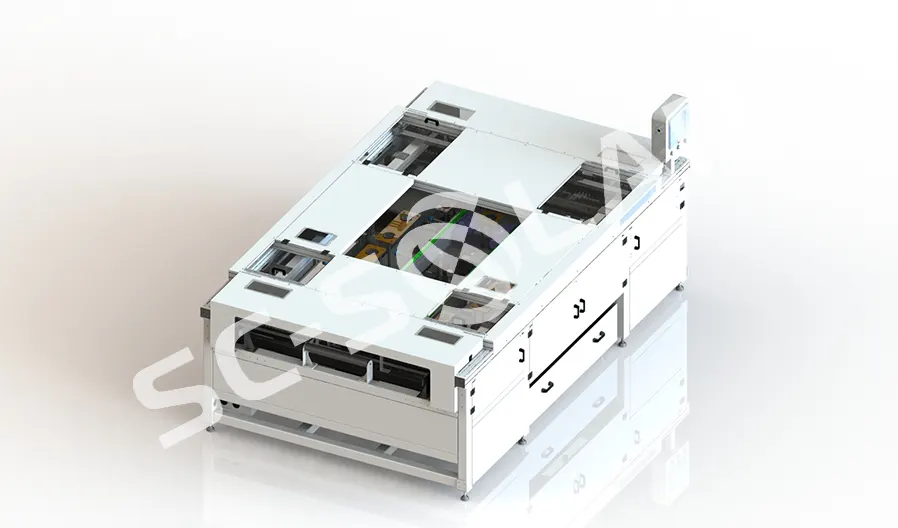

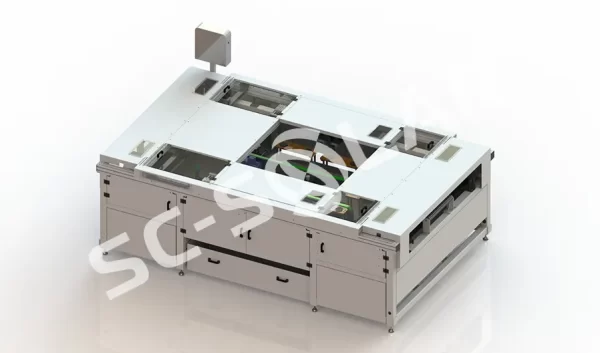

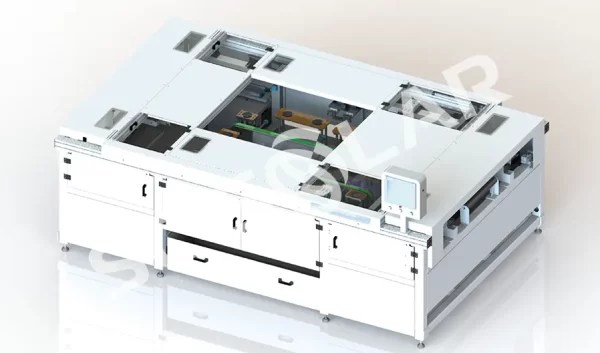

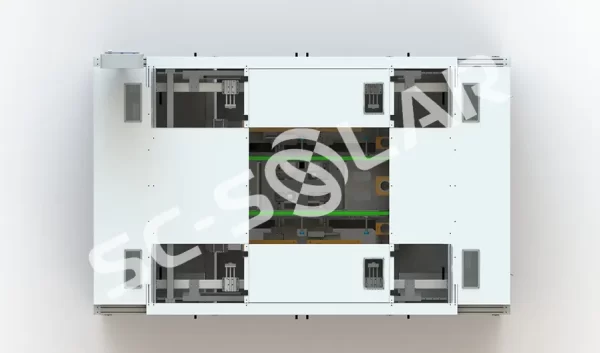

Auto Trimming

Functionality

Alignment blocking: one side block, two sides alignment
TFeeding method: electric roller clamping
Tape change time: ≤180s
Cycle time: ≤23s
Change time: ≤20min
Fragment rate: ≤0.05%
Operation mode: Auto/ Manual
Noise: ≤60dB
HMI: Chinese/ English mode
Yield:>98.5%

Datasheet

Features

Servo motor drives module transmission, linear guide to ensure accurate and stable operation.
Four edges cutting at the same time, the four corners adopt jacked suction cup structure.
The blade adopts arc edge to cut clean, second trimming blade adopt straight blade to cut clean.
The cut surface is smooth after trimming, which will not cause damage to the glass.
The blade adopts quick change structure, easy to replace.

Specifications

Item	Value
Model	SC-TR25-K8-01
Compatible module size	length: 1640-2550(mm); width: 950-1450(mm)
Cycle time	≤19s，≤16s Vertical≤19s, horizontal≤16s
Air pressure	0.6-0.8(MPa)
Power	≤2.2kW
Dimension(L x W x H)	320022101620(mm)
