Functionality
Module positioning accuracy: ±1mm
Torque requirements: 11.5±1.5Kgf.cm(ST3.5*32mm)
Compatible with double support bar modules
Replenish screw without stop
Features

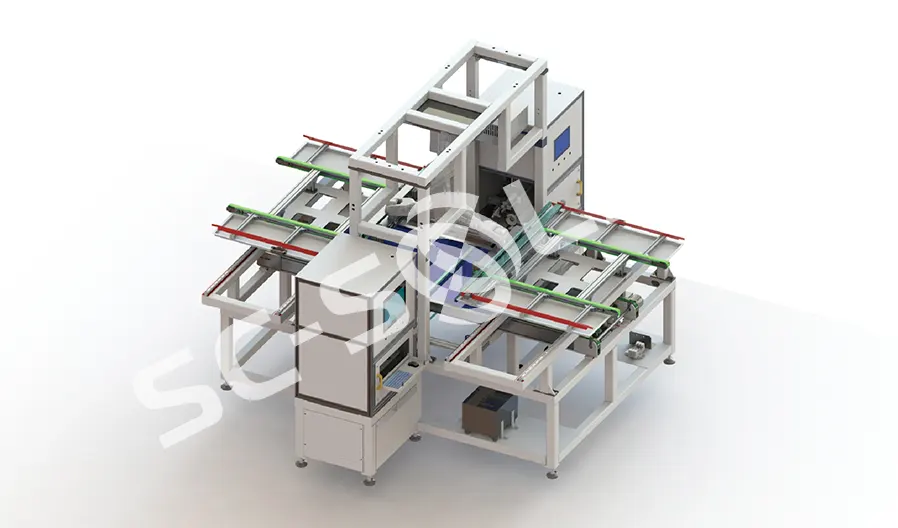

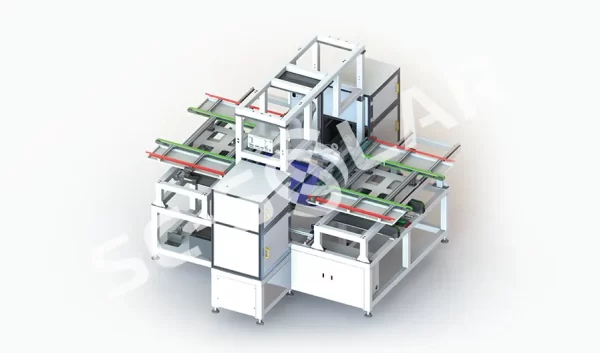

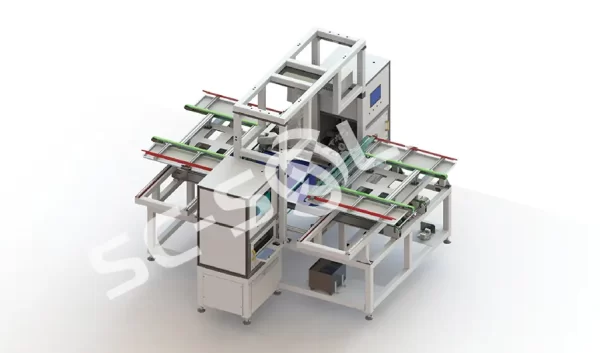

The overall structure is composed of a module alignment conveying unit, a support bar positioning mechanism, an automatic screwing system, etc.
The screw machine is driven by servo, automatic switching; to ensure that the modules can be in and out at the same time improving cycle time.
The camera takes a picture to locate the screw position, and the manipulator places the support bars and aligns the position of the mounting hole.
Touch screen interface, switch module specifications, manual operation, alarm information and other parameter settings.
With screw discharge detection, screw sliding detection, screw floating lock detection.
Specifications
| Item | Value |
| Compatible module size | length: 1650-2550(mm); width: 980-1450(mm) |
| Cycle time | ≤18s |
| Air pressure | 0.5-0.7(MPa) |
| Air consumption | 400L/min |
| Power | 5kW |
| Dimension(LxWxH) | 3100*3750*1900(mm) |
| Weight | 2000kg |
