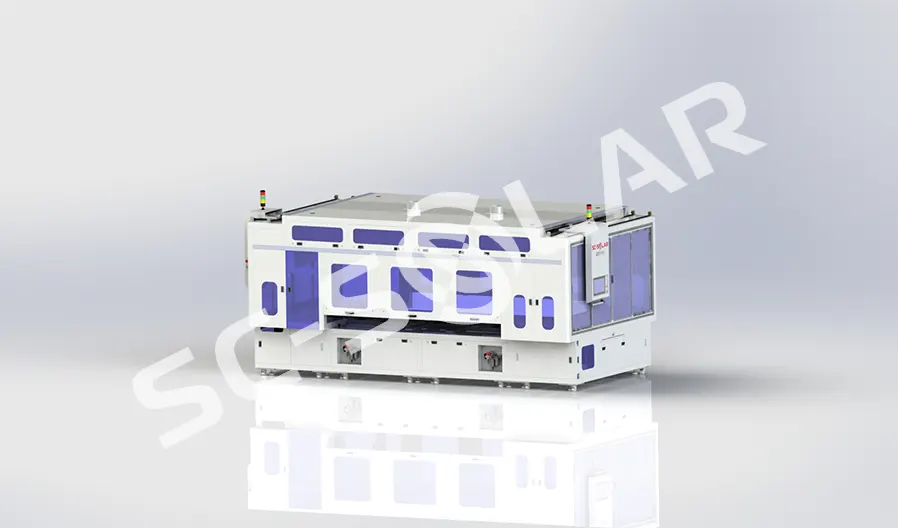

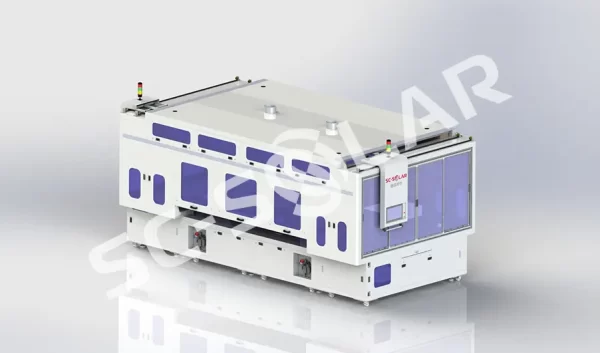

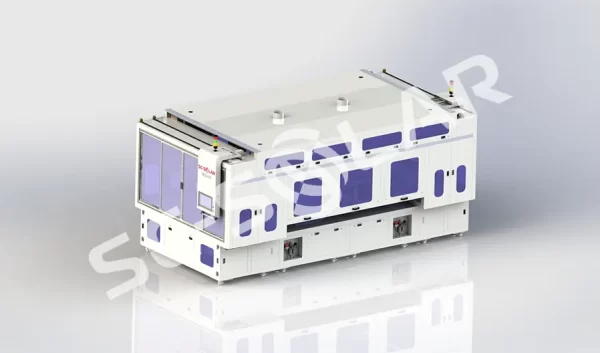

Functionality
Cell specification: 156*156-230*230(mm)/5BB-24BB
Bus-bar specification: roll feeding, material thickness 0.20-0.45(mm)
width 4/5/6/7/8(mm)
Welding tape reel weight: 50kg for large reel
Cycle time: 15s
Pull-off force and welding effect: 5BB≥4N,9BB≥2N
Correction characteristics: high cell precision ≤0.3mm.
wide correction range ±30mm
Visual inspection: 15 cameras in the head, middle and tail, supporting
lamination correction
Welding method: electromagnetic welding
Optional functions: single jumper, lead line punching, lead line rounding lead line black paint scraping(laser), virtual welding detection, non-stop refueling
Features
High-speed cycle time: ≤15s (conventional module).
The deviation correction range ±30mm, cell accuracy ≤0.3mm,the lamination is supported for one-time deviation correction.
Maintenance space clear, cutting single aging fast: 30min-60min.
Bus bar feeding non-stop.
With virtual welding detection function.
The flux has a flow monitoring function, and the backflush is turned on when the nozzle is blocked.
Compatible with ≤50kg bus bar.
Bypass welding jumper adopts modular design, can be optional.
Bus bar punching, black paint scraping (laser) function is optional.
Specifications
| Item | Value |
| Applicable glass size | 1640*2650(mm)，900*1500(mm) |
| Cycle Time | ≤15s |
| Power | Peak 50kW, average power about 30kW |
| Power requirement | AC380V±5%，3P+1N+1PE(3-phase5-wire system) |
| Air pressure | 0.5-0.8(MPa)dry and clean compressed air, dosage: 2m*/min |
| Weight | 7000kg |
| Dimension(L x W x H) | 5635*2840*2450(mm) |
